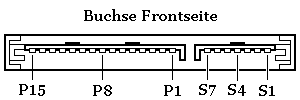

SATA-Deviceconnector Serial AT-Attachment
	Datenkabel S1 S2 S3 S4 S5 S6 S7 GND* TX+ TX- GND* RX- RX+ GND*
Powerkabel P1 P2 P3 P4 P5 3,3V 3,3V 3,3V* GND* GND* P6 P7 P8 P9 P10 GND* 5V* 5V 5V GND* P11 P12 P13 P14 P15 Res. GND* 12V* 12V 12V	* = Pins Verlängert (Pre-charge)
Quelle: Verschieden
